Other Products Peerless® Partner®
Indirect-Fired Water Heater

The Peerless® Partner® indirect-fired water heater is an efficient and dependable option for all domestic hot water requirements. The indirect water heater utilizes a Peerless® boiler as its heat source to provide the energy necessary to heat water. The boiler fires only when energy is required to replace the heated water that is being used, or if the tank had been idle. The highly insulated tank is not vented to the outdoors and loses very little heat, even when not in use for an extended period. The water heater’s design features maximum heat transfer and resists mineral build-ups that can cause discolored and foul tasting water.

Partner® tanks are available in several sizes with storage capacities of 30 to 119 gallons to meet any application. The 30-gallon capacity Peerless® Partner® Lo-Boy is a great choice for space-limited installations!

Check out our NEW Peerless® Partner® PV Tank – with a one-piece seamless design that is highly resistant to water quality variations and easy-to-operate control for extremely accurate temperature settings. Available in four sizes, the new PV tank is lightweight, durable and easy-to-install!




Product Details:

Type: Indirect-Fired Water Heater
Construction: Stainless Steel Tank/Maintenance Free Plastic Jacket
Fuel: Indirect-Fired
Storage Capacity: 37 to 119 Gallons
First Hour Ratings: 200 to 385 Gallons @ 140°
295 to 513 Gallons @ 115°


Peerless® Partner® PV Ratings

Water Heater
Model
Number
Potable
Water
Volume,
gallons
Standby
Loss,
ºF/h
Continuous
Draw,
gal/h
First Hour
Rating,
gal/h
Min Heat
Source
output,
MBH
Min Heat
Source Flow,
gpm output,
MBH
Heat Source
Friction Loss,
feet
Domestic
Water
Connection
Sizes
(NPT)
Boiler
Connection
Sizes
(NPT)
PV-40 30.0 0.8 177 199 115000 8.0 18.7 3/4″ 3/4″
PV-60 55.0 0.6 177 217 115000 8.0 18.7 3/4″ 3/4″
PV-80 80.0 0.4 315 381 199000 14.0 16.0 1-½” 1″
PV-120 119.0 0.4 381 477 244000 14.0 20.0 1-½” 1″

These ratings were obtained with a heat source output and heat source flow rate as listed in the chart using the parameters of the Domestic Cold Water inlet at 58°F, Domestic Temperature Rise of 77°F and Boiler Temperature Output of 180°F. other results will be obtained under different conditions.

Peerless® Partner® PP Models

Model Number First Hour Rating1 Minimum Boiler Output2 to Achieve First Hour Rating (Btu per hour) Useable Hot Water3 (gallons) Heat Exchanger Surface Area (sq. ft.)
140°F 115°F
PP-30-LB 169 234 114,000 22 15
PP-40 212 292 141,000 28 20
PP-60 266 370 174,000 46 20
PP-80 330 440 212,000 64 34
PP-120 423 564 269,000 94 34
  1. First hour rating based on heating water from 50°F to 140°/115°F with 180°F boiler water temperature. Gas- and oil-fired and electric water heater first hour ratings based on DOE test procedure using 90°F temperature rise (55°F to 145°F).
  2. Gross Output, Water.
  3. Useable hot water based on recent completion of recovery period, but no additional boiler input after draw begins.






Series Peerless® Partner® Dimensions – PV Models (Image #1)

Model Number Height Diameter
PV-40 40-1/2″ 22-3/4″
PV-60 41″ 28″
PV-80 53-1/2″ 28″
PV-120 74″ 28″

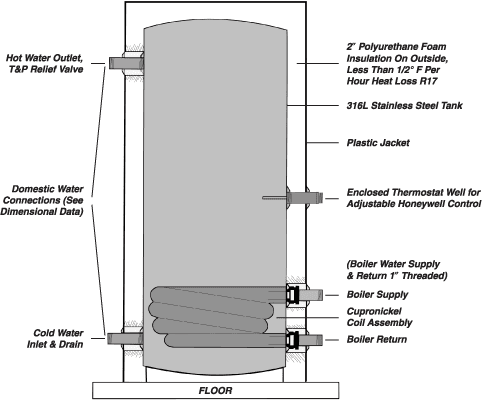

Series Peerless® Partner® Dimensions – PP Models (Image #2)

Model Number Diameter Height Floor to ‘Boiler In’ Floor to ‘Boiler Out’ Floor to ‘Cold – Drain’ Floor to ‘Hot – T&P’ Domestic Water Connection Sizes
PP-30-LB 23-1/4″ 28-1/2″ 9″ 4-1/2″ 4-1/2″ 22″ 3/4″
PP-40 19-1/4″ 52-1/2″ 9″ 4-1/2″ 4-1/2″ 46″ 3/4″
PP-60 23-1/4″ 52-1/2″ 9″ 4-1/2″ 4-1/2″ 46″ 1″
PP-80 23-1/4″ 72″ 29″ 5-1/2″ 5-1/2″ 64″ 1-1/2″
PP-120 27″ 73-1/2″ 30-1/4″ 7-1/4″ 7-1/4″ 66″ 1-1/2″
