Other Products PFW Piping Kit
Turn a standard natural or LP gas-fired Peerless® PureFire® boiler into a large volume, hot water supply boiler with our simple PF to PFW conversion kit! The kit is available for PureFire® boiler models PF-200 or PF-399 which then become PFW-200 or a PFW-399 hot water supply boilers after the conversion kit is installed. The PFW boiler models are compliant with the lead-free requirements of the Safe Drinking Water Act and also feature Low NOx operation.
See your local dealer or rep for more information.
Product Details:
Type: Residential
Construction: Stainless Steel
Fuel: Gas-Fired (Natural or LP)
Input: 199 to 399 MBH
Output: 185 to 380 MBH
Venting: Sealed Combustion, Direct Vent
Trim: Water
Combustion: Direct Spark
Storage Capacity: 60 to 200 Gallons
Peerless® PUREFIRE® PFW™Series |
|||||
|---|---|---|---|---|---|
| Model Number | Input, MBH | Heating Capacity1 | NET Ratings Water2, MBH | Thermal Efficiency1, % | |
| Min | Max | ||||
| PFW-200 | 42 | 199 | 185 | 161 | 95.0 |
| PFW-399 | 80 | 399 | 380 | 330 | 95.2 |
NOTE: Consult factory before selecting a boiler for installations having unusual piping and pickup requirements, such as intermittent system operation, extensive piping systems, etc.
1 Heating Capacity and Annual Fuel Utilization Efficiency (AFUE) ratings are based on U.S. Government test.
2 Net water ratings are based on an allowance of 1.15.
1st Hour Capacity (gallons)*
| Boiler Model Number | ΔT | Recovery Capacity (gph) | Tank Storage Capacity (gallons) | |||
|---|---|---|---|---|---|---|
| 60 | 80 | 119 | 200 | |||
| PFW-200 | 40 | 546 | 591 | 605 | 633 | 689 |
| 60 | 364 | 408 | 422 | 449 | 506 | |
| 80 | 273 | 317 | 331 | 358 | 415 | |
| 100 | 218 | 262 | 276 | 303 | 360 | |
| PFW-399 | 40 | 1119 | 1161 | 1175 | 1203 | 1259 |
| 60 | 746 | 788 | 802 | 830 | 886 | |
| 80 | 560 | 602 | 616 | 643 | 700 | |
| 100 | 448 | 490 | 504 | 531 | 588 | |

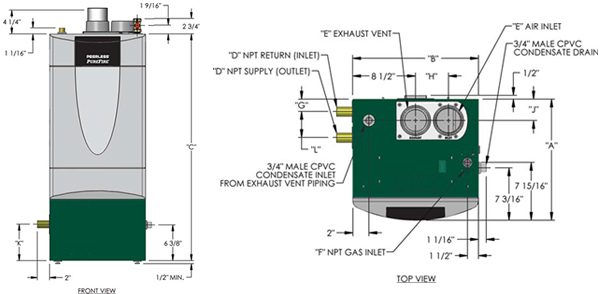

Dimensions & Connection Sizes
| Boiler Model Number | “A”(inch) | “B”(inch) | “C” (inch) | “D” (inch) | “E” (inch) | “F” (inch) | “G” (inch) | “H” (inch) | “J” (inch) | “K” (inch) | “L” (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PFW-200 | 16-9/16 | 17-3/16 | 40-1/2 | 1 | 3 | 3/4 | 1-3/4 | 4-1/2 | 3 | 6-1/2 | 3-9/16 |
| PFW-399 | 27-15/16 | 17-3/16 | 40-1/2 | 1-1/2 | 4 | 3/4 | 2-3/4 | 5-1/4 | 3-1/2 | 5-3/4 | 7-1/16 |
