Residential Boilers - Gas Boilers

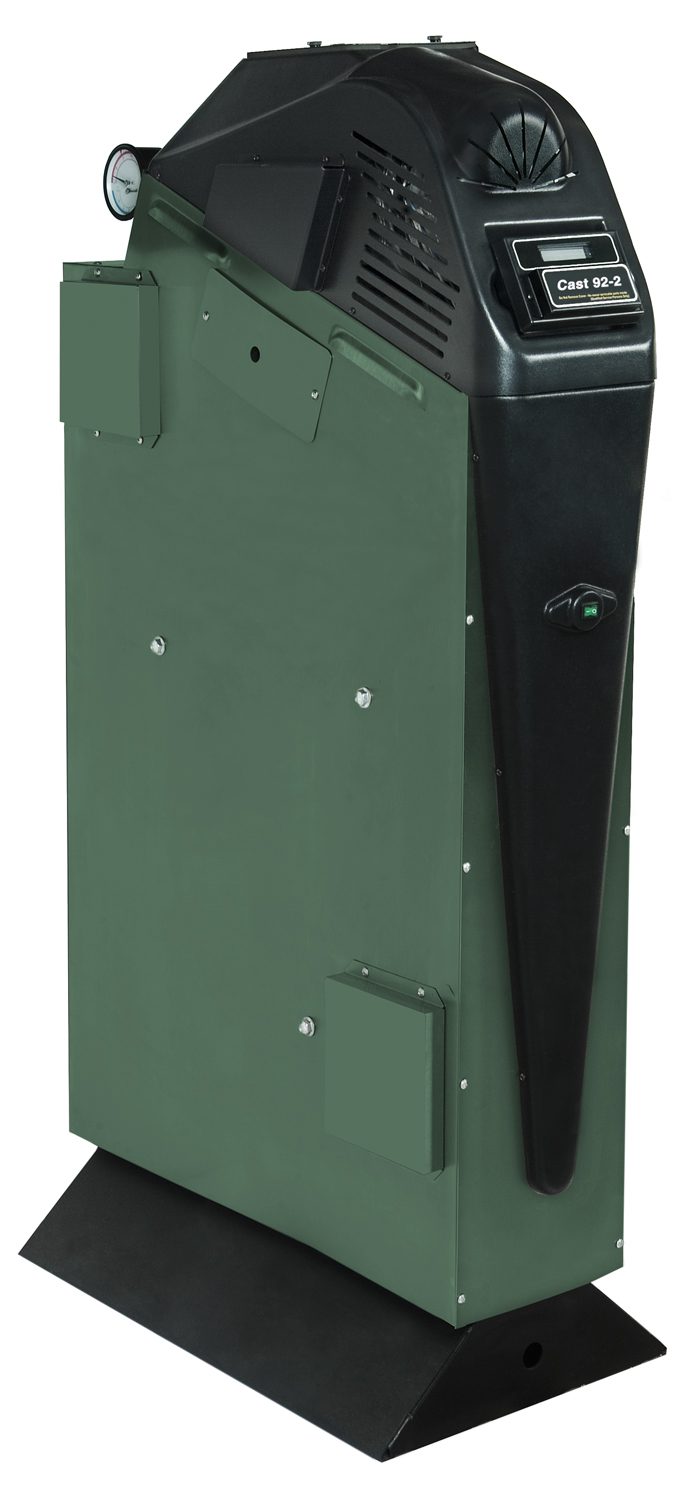

Series Cast 92-2™ Boiler
The 90% efficient ENERGY STAR® certified Series Cast 92-2™ is a condensing gas-fired cast iron boiler. The cast iron heat exchanger retains heat longer than other types of heat exchangers and contributes to the extreme durability of the boiler. The Cast 92-2™ is environmentally friendly with low emissions for both CO2 and NOx and features quiet operation. The boiler’s compact, space-saving design makes it perfect for replacing older, larger, less-efficient cast iron boilers.
Product Details:
Type: Residential
Construction: Cast Iron
Fuel: Gas-Fired (Natural or LP)
Input: 40 to 199 MBH
Output: 37 to 184 MBH
Venting: Sealed Combustion, Direct Vent
Trim: Water
Combustion: Direct Spark
| Boiler Model Number | Input, Btu/hr | Output, MBH | Gas Pressure, W.C. | Voltage | Flow GPM | Temp. Rise (°F) | Vent Length, Equiv. Ft. | Air Inlet Length, Equiv. Ft. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | ||||
| 92-2 | 199 | 184 | 2″ | 14″ | 120VAC/60Hz/IPH | 2** | 36 | 20 | 100 | 0 | 100 | 0 | 100 |
| Water Volume, Gallons | Flue Dia. | Current FLA, Amps | Boiler H.P. | NET Ratings, Btu/hr | AFUE, % |
|---|---|---|---|---|---|
| 4.75 | 3″ | 2.75 | 5.3 | 148 | 90 |
**At 100% Input
