Commercial Boilers - Gas Boilers Series CC™ Boiler

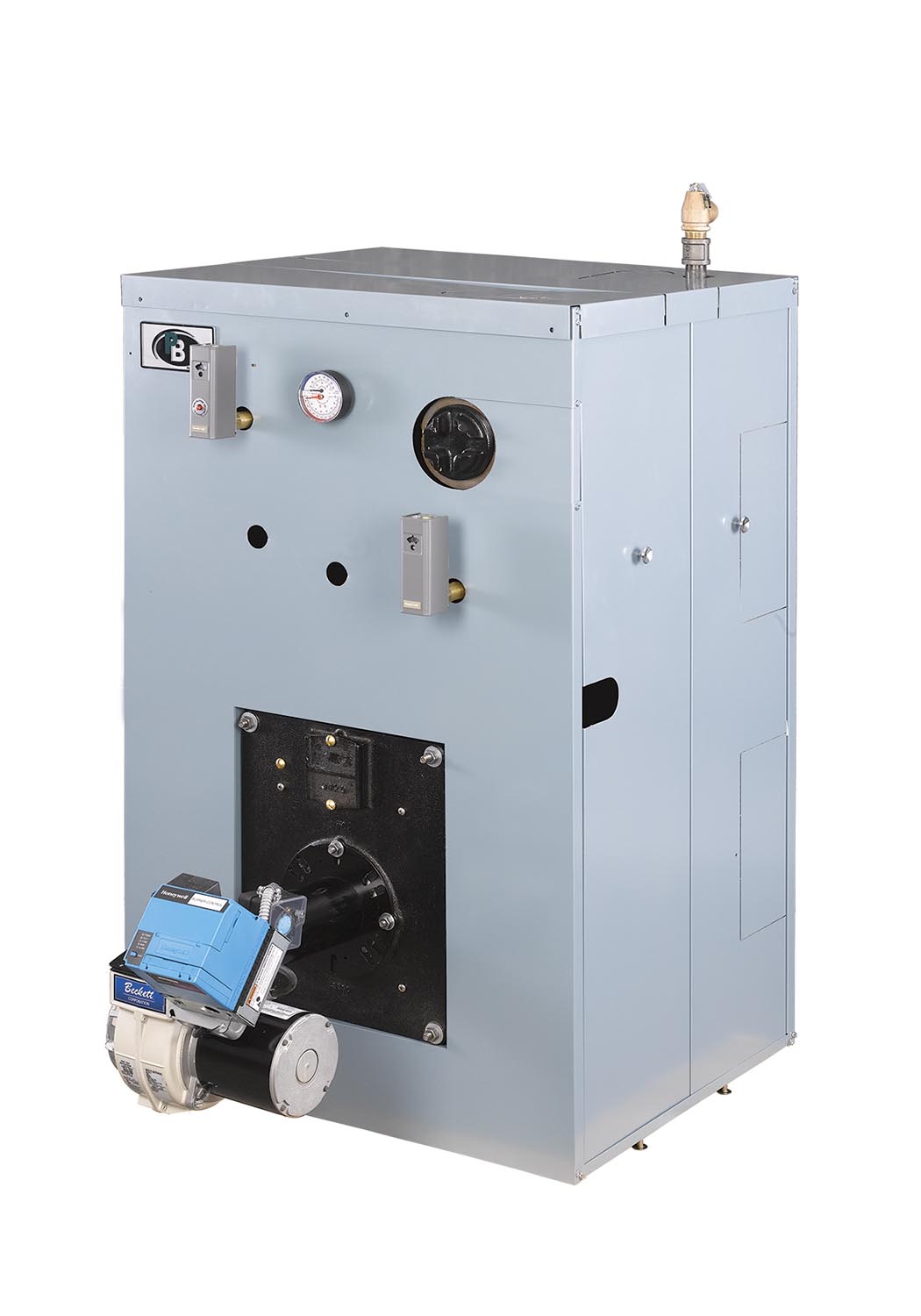

The Series CC™ cast iron steam or hot water commercial boiler features an efficient power burner that is capable of firing gas, oil or combination gas/oil configurations with thermal efficiencies of up to 84.6%. The boiler is perfect for applications where both domestic hot water and space heating are required. Available in 10 sizes ranging from 375 MBH to 2,165 MBH, the boiler has domestic hot water outputs of 8.5 to 26.9 GPM. The CC boiler is designed to provide years of dependable and efficient operation.




Product Details:

Type: Commercial
Construction: Cast Iron
Fuel: Gas, Oil or Oil/Gas Combination
Input: Gas 375 MBH – 2,165 MBH; Oil 2.6 GPH to 15.0 GPH
Output: Gas or Oil 308 MBH to 1,750 MBH
Venting: Forced Draft
Trim: Water or Steam
Combustion: Power Burner


Series SC/SCT™
Model Number Oil Input Gas Input, MBH Gross Output, MBH Net Ratings Thermal Efficiency, % Boiler H.P. Water Content, Gallons Furnace Volume (Cu.Ft.) Boiler Working Weight (lbs) Heating Surface (sqft)
GPH MBH Steam, sqft Steam, MBH Water, MBH Oil Gas Steam Water
CC-03 2.6 364 375 308 963 231 268 84.6 82.1 9.2 33 38 2.12 1716 23.9
CC-04 3.6 504 520 421 1316 316 366 84.1 81.5 12.5 41 49 3.50 2122 35.8
CC-05 5.0 700 722 587 1725 441 540 83.9 81.3 17.5 49 59 4.88 2528 47.7
CC-06 6.5 910 938 762 2382 572 663 83.7 81.2 22.8 56 70 6.27 2933 59.7
CC-07 7.9 1106 1140 924 2888 694 803 83.5 81.1 27.6 64 80 7.65 3339 71.6
CC-08 9.3 1302 1342 1087 3398 815 945 83.5 81.0 32.5 72 91 9.04 3745 83.5
CC-09 10.8 1512 1559 1262 3947 947 1097 83.5 83.5 37.7 80 102 10.42 4150 95.4
CC-10 12.2 1708 1761 1424 4506 1081 1238 83.4 83.4 42.5 88 112 11.81 4555 107.4
CC-11 13.6 1904 1963 1587 5071 1217 1380 83.4 83.4 47.4 96 123 13.2 4960 119.3
CC-12 15.0 2100 2165 1750 5635 1352 1522 83.4 83.4 52.3 104 133 14.58 5366 131.2

Net Ratings are based on an allowance of 1.15 for Water Boilers. Net Ratings for steam boilers are based on a pick-up factor of 1.333.

Burner oil input based on Commercial Standard #2 fuel oil with a heating value of 140,000 BTU/Gal.

Burner natural gas input based on natural gas with heating value of 1,000 BTU/Cu. Ft. and a specific gravity of 0.60.

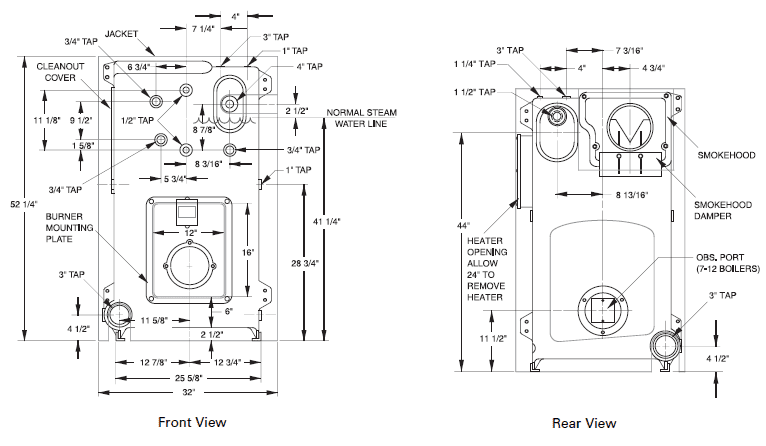

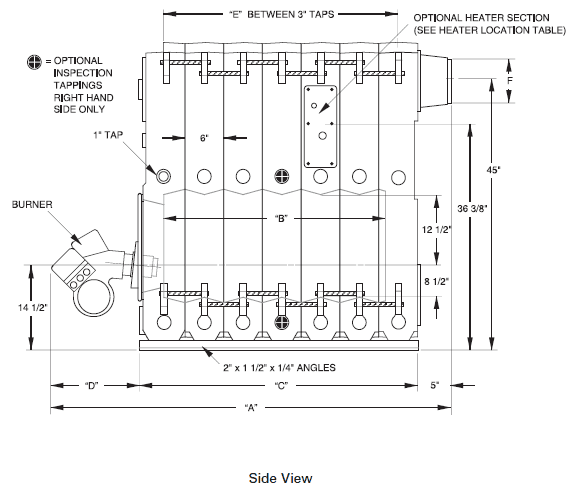

Series CC™ Boiler Dimensions

Boiler
Model
Number
Overall Length – “A” (inch) Firebox Length
“B”
(inch)
Boiler Length
“C”
(inch)
Burner Length “D” (inch) Riser Tapping Location
“E”
(inch)1
Diameter of Vent Connector
“F”
(inch)
Carlin Power Flame/J Power Flame/C Beckett Oil Carlin Power Flame/J Power Flame/C Beckett Oil
CC-03 39 44 N/A 31 9 18 16 21 N/A 13 12 7
CC-04 45 50 59 37 15 24 16 21 30 13 18 7
CC-05 51 56 65 43 21 30 16 21 30 13 24 8
CC-06 61 62 71 49 27 36 20 21 30 13 30 8
CC-07 67 68 82 64 33 42 20 21 35 22 36 9
CC-08 73 74 88 N/A 39 48 20 21 35 23 42 10
CC-09 79 80 94 77 45 54 20 21 35 23 48 10
CC-10 87 86 100 83 51 60 22 21 35 23 54 10
CC-11 93 N/A 106 89 57 66 22 N/A 35 23 60 122
CC-12 99 N/A 112 99 63 72 22 N/A 35 27 66 122
