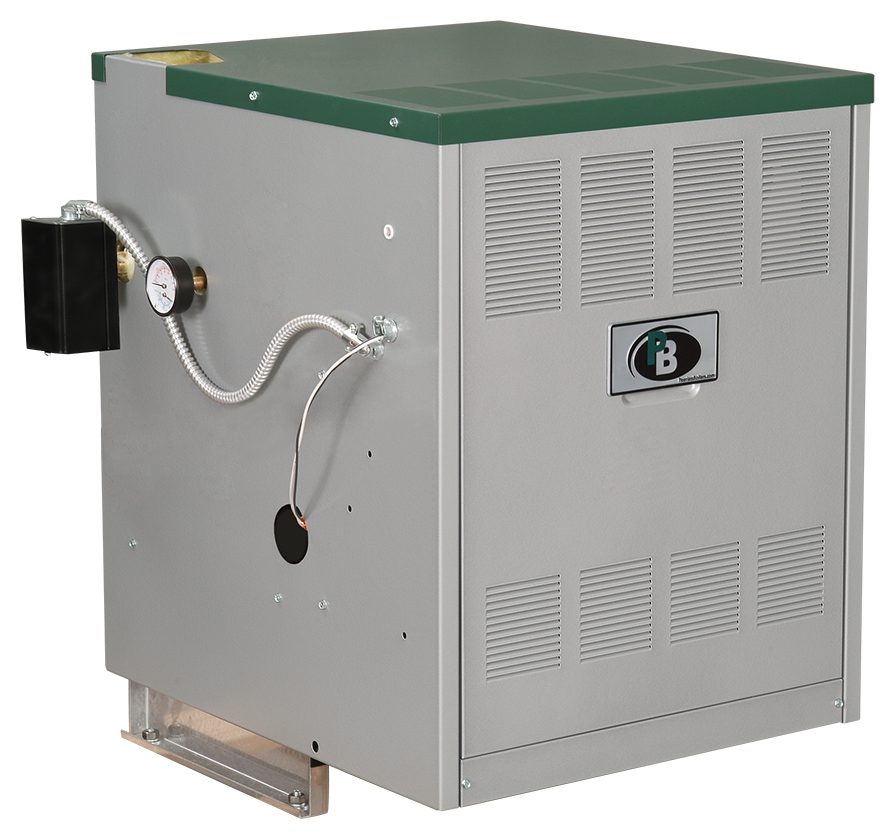

Residential Boilers - Gas Boilers Series DE™ Boiler
The Series DE™ boiler comes fully packaged and ready-to-install and is designed for installations with a conventional chimney or direct, through-the-wall venting. The boiler is constructed with more cast iron than other brands for more durability. As with all Peerless® brand hot water, cast iron boilers, a low-water cutoff is provided as standard equipment for safe operation. The Series DE™ boiler is backed by one of the best warranties in the industry.
Product Details:
Type: Residential
Construction: Cast Iron
Fuel: Gas-Fired (Natural or LP)
Input: 70 to 165 MBH
Output: 58 to 136 MBH
Venting: Direct Exhaust or Chimney
Trim: Water
Ignition: Spark Pilot
Series DE™ |
Water Content, gal | |||||
|---|---|---|---|---|---|---|
| Model Number | Input, MBH | Heating Capacity3, MBH | Net Ratings Water1,2, MBH | AFUE3,% | ||
| DE-03 | 70 | 58 | 50 | 82.1 | 4.72 | |
| DE-04 | 105 | 87 | 76 | 82.0 | 6.00 | |
| DE-05 | 140 | 116 | 101 | 82.0 | 7.28 | |
| DE-06 | 165 | 136 | 118 | 82.0 | 8.56 | |
- Net water ratings based on an allowance of 1.15.
- Consult factory before selecting a boiler for installations having unusual piping and pickup requirements, such as intermittent system operation, extensive piping systems, etc.
- Heating Capacity and Annual Fuel Utilization Efficiency (AFUE) ratings are based on U.S. Government test.

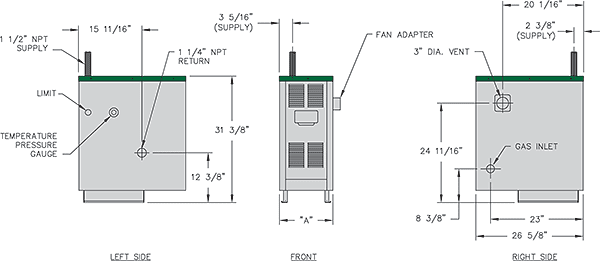

Series PSCII™ Boiler Dimensions
| Boiler Model Number | Jacket Depth “A” | Jacket Width “B” | Jacket Height “C” |
|---|---|---|---|
| DE-03 DE-04 DE-05 DE-06 |
26-5/8″ | 12-1/2″ 15-7/8″ 19-1/4″ 22-5/8″ |
31-3/8″ |
