Residential Boilers - Oil Boilers Series EC™ with Optional Tankless Heater Boiler

The Series EC™ is a residential, oil-fired, cast iron boiler for steam or hot water systems. The large water content of the boiler makes it ideal for steam and large volume hot water applications. The EC boiler has an AFUE of up to 87.6% – ENERGY STAR® certified – and features high efficiency, flame retention burners in choice of Beckett, Carlin or Riello. Optional tankless coils can be added for all your domestic hot water needs. A full, non-prorated lifetime warranty is included for all water boilers and a limited 10-year warranty covers the heat exchanger of steam boilers.




Product Details:

Type: Residential
Construction: Cast Iron
Fuel: Oil-Fired
Input: 105 to 420 MBH
Output: 92 to 347 MBH
Venting: Natural Draft
Trim: Water or Steam
Combustion: Flame Retention Burner


AHRI Member



Series EC™ Water Content, Gallons
Model Number Input Output3,4 MBH Net Ratings2 AFUE, % Thermal Efficiency4, % Combustion Efficiency,%
GPH1 MBH Water Steam Steam, sqft Steam, MBH Water, MBH
Water Steam Water Steam
EC(T)-e-03 0.75 105 93 92 288 69 81 87.6* 86.5 17.40 14.16
EC(T)-e-03 1.00 140 122 121 379 91 106 86.5 85.5 17.40 14.16
EC(T)-e-04 1.25 175 153 152 475 114 133 86.5 85.4 21.72 17.28
EC(T)-e-04 1.50 210 183 181 567 136 159 86.3 85.5 21.72 17.28
EC(T)-e-05 1.75 245 215 213 667 160 187 86.8 85.5 26.04 20.40
EC(T)-e-05 2.00 280 243 242 758 182 211 86.2 85.0 26.04 20.40
EC(T)-05 2.40 336 279 279 872 209 243 83.0 85.1 26.04 20.40
EC(T)-06 2.75 385 321 321 1004 241 279 83.3 84.4 30.36 23.52
EC(T)-06 3.00 420 347 347 1083 261 302 82.5 83.7 30.36 23.52

*As an ENERGY STAR® partner, PB Heat, LLC has determined that these firing rates meet the ENERGY STAR® guidelines for energy efficiency.
† All chimneys are 8″ x 8″ x 20′ except those models denoted with †, which are 8″ x 12″ x 20′.

1 Burner input based on No. 2 fuel oil with a heating value of 140,000 Btu per gallon.
2 Net water ratings based on an allowance of 1.15, net steam ratings based on an allowance of 1.333. Consult factory before selecting a boiler for installations having unusual piping and pickup requirements, such as intermittent system operation, extensive piping systems, etc.
3 Output is Heating Capacity for models with inputs <300 MBH and Gross Output for models with inputs ≥300 MBH. Heating Capacity and Annual Fuel Utilization Efficiency (AFUE) ratings are based on U.S. Government tests.
4 Thermal efficiency and gross output are determined in accordance with ANSI/AHRI Standard 1500.

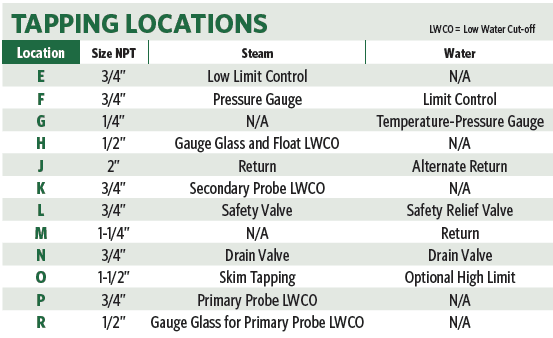

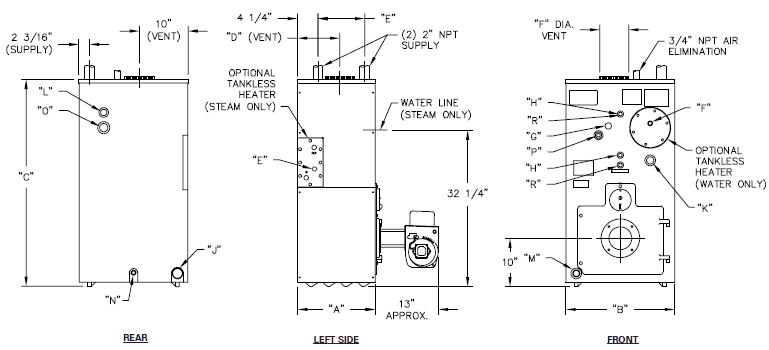

Series EC™ Boiler Dimensions

Boiler Model Number Jacket Depth
“A”
Jacket Width
“B”
Jacket Height
“C”
Rear of Jacket to c/l of Vent
“D”
Distance Between Supply Tappings
“E”
Vent Size Diameter
“F”
EC(T)-03 15-3/4″ 22-1/2″ 42″ 8-3/4″ 9-1/16″ 6″
EC(T)-04 19-15/16″ 22-1/2″ 42″ 10-7/8″ 13-1/4″ 7″
EC(T)-05 24-1/8″ 22-1/2″ 42″ 13″ 17-7/16″ 8″
EC(T)-06 28-5/16″ 22-1/2″ 42″ 15-1/16″ 21-5/8″ 9″
