Commercial Boilers - Gas Boilers Series LC/LCE™ Boiler

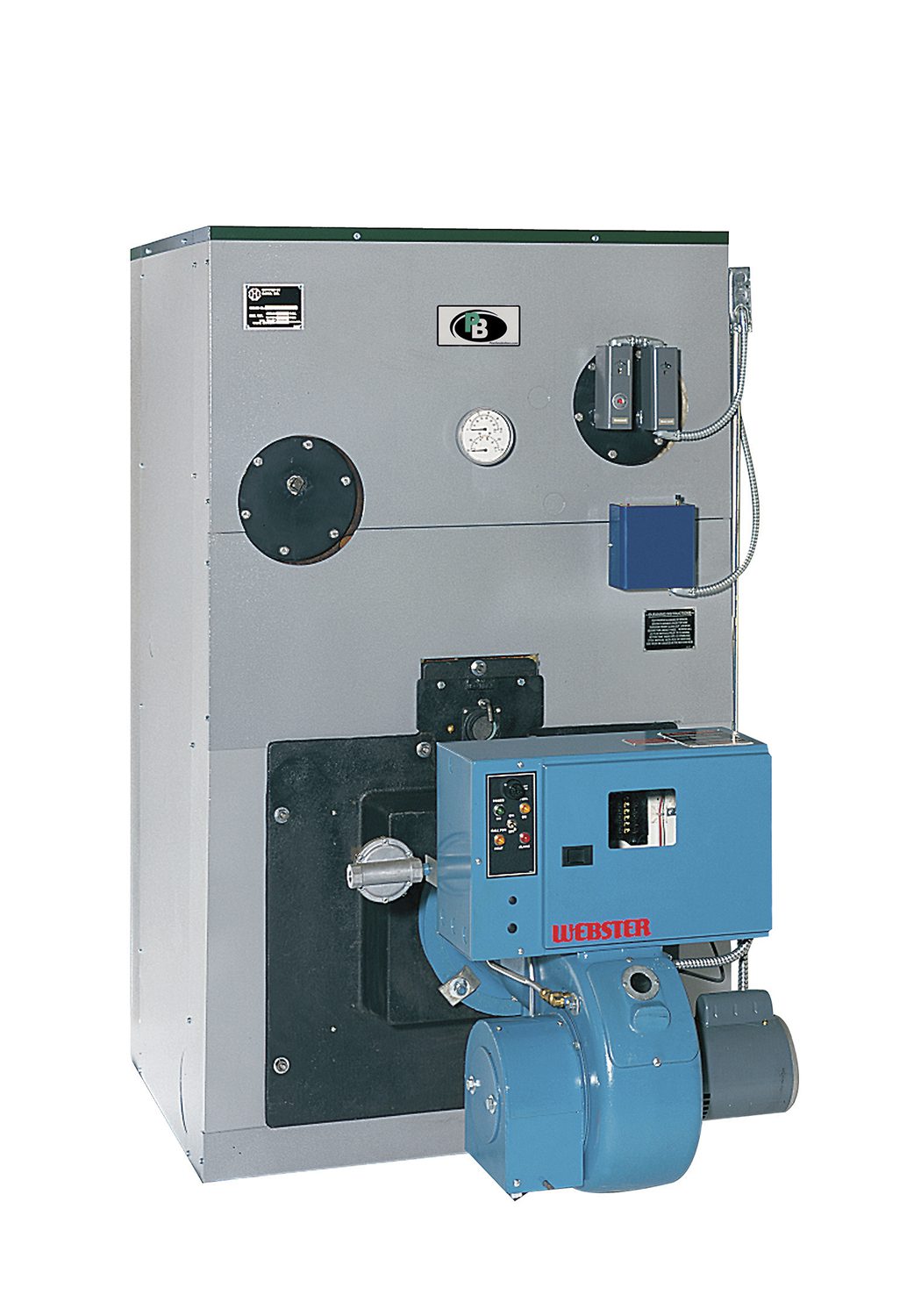

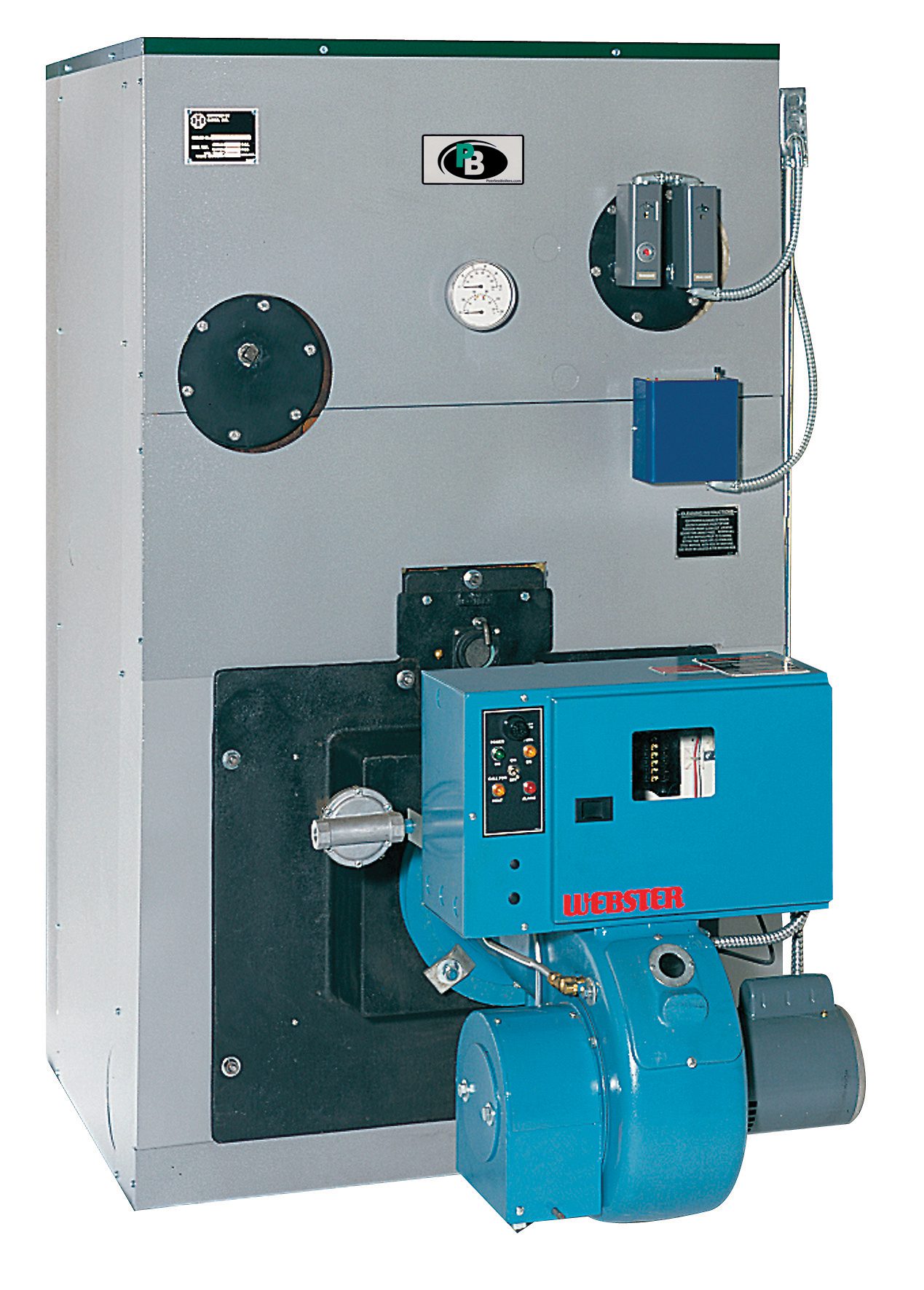

The forced-draft, cast iron Series LC/LCE™ boiler can be equipped with efficient burners for applications requiring gas, oil or combination gas/oil firing. There are 22 commercial sizes available for hot water or steam applications with inputs of 686 MBH up to 4,663 MBH, and thermal efficiencies of up to 83.7%. The advanced design allows for simpler installation using flex-seal gaskets and individual draw rods, as well as easy access to the boiler via top and front plates for inspection and cleaning. Optional tankless coils can be added for production of domestic hot water.
Product Details:
Type: Commercial
Construction: Cast Iron
Fuel: Oil, Gas, Gas/Oil-Fired
Input: 686 to 4,663 MBH
Output: 547 to 3,777 MBH
Venting: Forced Draft
Trim: Water or Steam
Combustion: Power Burner
Series LC/LCE™![]() |
Water Content | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model Number | Oil Input | Gas Input, MBH | Net Ratings4 | Oil | Gas | Steam, Gal | Water, Gal | |||||||
GPH | MBH | Steam, sqft | Steam3, MBH | Water2, MBH | Combustion Efficiency5, % | Thermal Efficiency5, % | Combustion Efficiency5, % | Thermal Efficiency5, % | ||||||
LC-04 | 4.75 | 665 | 686 | 1,708 | 410 | 476 | 83.7 | 82.2 | 81.2 | 79.8 | 40.57 | 50.65 | ||
LC-05R | 5.60 | 784 | 808 | 2,029 | 487 | 564 | 83.7 | 82.8 | 81.2 | 80.3 | 47.29 | 59.05 | ||
LC-05 | 6.10 | 854 | 881 | 2,208 | 530 | 615 | 83.7 | 82.8 | 81.2 | 80.3 | 47.29 | 59.05 | ||
LC-06 | 7.50 | 1,050 | 1,077 | 2,713 | 651 | 755 | 83.7 | 83.1 | 81.1 | 80.6 | 54.01 | 67.45 | ||
LC-07 | 8.80 | 1,232 | 1,273 | 3,217 | 772 | 895 | 83.6 | 83.3 | 81.1 | 80.8 | 60.73 | 75.85 | ||
LC-08 | 10.20 | 1,428 | 1,469 | 3,717 | 892 | 1,034 | 83.6 | 83.5 | 81.1 | 81.0 | 67.45 | 84.25 | ||
LC-09 | 11.60 | 1,624 | 1,664 | 4,250 | 1,020 | 1,174 | 83.6 | 83.6 | 81.1 | 81.1 | 74.17 | 91.65 | ||
LC-10 | 12.80 | 1,792 | 1,860 | 4,804 | 1,153 | 1,314 | 83.6 | 83.7 | 81.1 | 81.2 | 80.89 | 101.05 | ||
LC-11 | 14.20 | 1,988 | 2,056 | 5,367 | 1,288 | 1,454 | 83.6 | 83.8 | 81.1 | 81.3 | 87.61 | 109.45 | ||
LC-12 | 15.60 | 2,184 | 2,252 | 5,917 | 1,420 | 1,593 | 83.6 | 83.9 | 81.1 | 81.4 | 94.33 | 117.85 | ||
LCE-13 | 17.00 | 2,380 | 2,464 | 6,358 | 1,526 | N/A | 83.5 | 82.2 | 81.0 | 79.8 | 101.05 | — | ||
LCE-14 | 18.40 | 2,576 | 2,657 | 6,875 | 1,650 | N/A | 83.5 | 82.5 | 81.0 | 80.0 | 107.77 | — | ||
LCE-15 | 19.80 | 2,772 | 2,850 | 7,388 | 1,773 | N/A | 83.5 | 82.6 | 81.0 | 80.2 | 114.49 | — | ||
LCE-16 | 21.00 | 2,940 | 3,043 | 7,908 | 1,898 | N/A | 83.5 | 82.8 | 81.0 | 80.3 | 121.21 | — | ||
LCE-17 | 22.50 | 3,150 | 3,236 | 8,421 | 2,021 | N/A | 83.5 | 82.9 | 81.0 | 80.4 | 127.93 | — | ||
LCE-18 | 24.00 | 3,360 | 3,429 | 8,938 | 2,145 | N/A | 83.5 | 83.1 | 81.0 | 80.6 | 134.65 | — | ||
LCE-19 | 25.00 | 3,500 | 3,622 | 9,454 | 2,269 | N/A | 83.5 | 83.2 | 81.0 | 80.7 | 141.37 | — | ||
LCE-20 | 26.50 | 3,710 | 3,815 | 9,971 | 2,393 | N/A | 83.5 | 83.3 | 81.0 | 80.8 | 148.09 | — | ||
LCE-21 | 28.00 | 3,920 | 4,027 | 10,533 | 2,528 | N/A | 83.6 | 83.3 | 81.1 | 80.8 | 154.81 | — | ||
LCE-22 | 29.50 | 4,130 | 4,239 | 11,096 | 2,663 | N/A | 83.6 | 83.4 | 81.1 | 80.9 | 161.53 | — | ||
LCE-23 | 31.00 | 4,340 | 4,451 | 11,658 | 2,798 | N/A | 83.7 | 83.5 | 81.2 | 81.0 | 168.25 | — | ||
LCE-24 | 32.50 | 4,550 | 4,663 | 12,217 | 2,932 | N/A | 83.7 | 83.5 | 81.2 | 81.0 | 174.97 | — |
- Burner input based on No. 2 fuel oil with a heating value of 140,000 Btu per gallon.
- Net water ratings based on allowance of 1.15.
- Net steam ratings based on an allowance for LC-04 to LC-08=1.333, LC-09=1.323, LC-10=1.310, LC-11=1.298, LC-12=1.290, LCE-13 to LCE-24=1.288.extensive piping systems, etc.
- Consult factory before selecting a boiler for installation having unusual piping and pickup requirements, such as intermittent system operation, extensive piping systems, etc.
- Combustion and thermal efficiencies are determined in accordance with BTS 2000 Testing Standard.

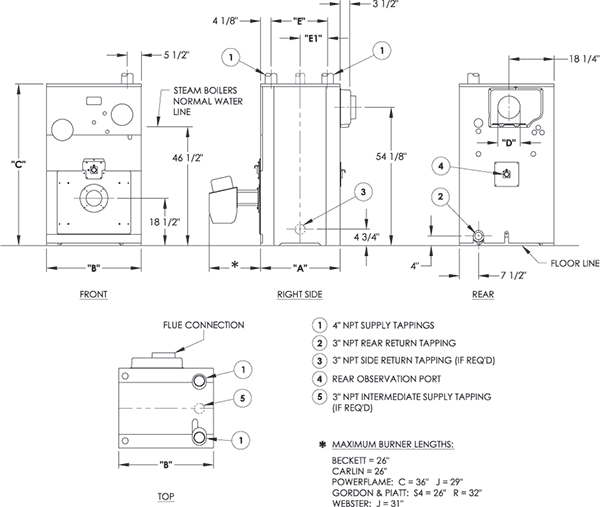

Series LC™ Boiler Dimensions
Boiler Model Number | Jacket Depth “A” |
Jacket Width “B” |
Jacket Height “C” |
Flue Size “D” |
Distance Between Tappings* | |||||
---|---|---|---|---|---|---|---|---|---|---|
“E” | Water | Steam | ||||||||
“E1” | “E1” | “E2” | “E3” | “E4” | ||||||
LC-04 | 25-15/16″ | 37″ | 63″ | 9″ | 16-1/2″ | — | — | — | — | — |
LC-05R | 31″ | 37″ | 63″ | 9″ | 21-9/16″ | — | — | — | — | — |
LC-05 | 31″ | 37″ | 63″ | 9″ | 21-9/16″ | — | — | — | — | — |
LC-06 | 36-1/16″ | 37″ | 63″ | 10″ | 26-5/8″ | — | — | — | — | — |
LC-07 | 41-1/8″ | 37″ | 63″ | 10″ | 31-11/16″ | — | — | — | — | — |
LC-08 | 46-5/16″ | 37″ | 63″ | 10″ | 36-13/16″ | 15-13/16″ | — | — | — | — |
LC-09 | 51-3/8″ | 37″ | 63″ | 12″ | 41-7/8″ | 20-15/16″ | — | — | — | — |
LC-10 | 56-7/16″ | 37″ | 63″ | 12″ | 46-15/16″ | 20-15/16″ | — | — | — | — |
LC-11 | 61-1/2″ | 37″ | 63″ | 12″ | 52″ | 26″ | 26″ | — | — | — |
LC-12 | 66-9/16″ | 37″ | 63″ | 12″ | 57-1/8″ | 26″ | 26″ | — | — | — |
Apply Prefix”O” for oil—”G” for gas—”GO” for gas-oil.
The manufacturer should be consulted before selecting a boiler for installations having unusual piping and pickup requirements, such as intermittent system operation,
extensive piping, etc. For forced hot water heating systems where the boiler and all the piping are within the area to be heated, the boiler may be selected on the
basis of its Gross Output.
* Dimensions are approximate.

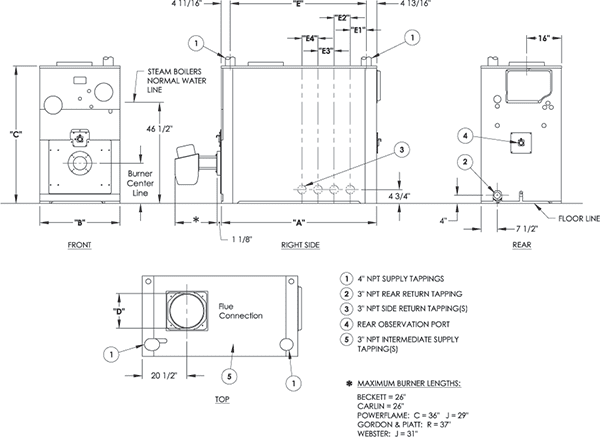

Series LCE™ Boiler Dimensions
Boiler Model Number | Jacket Depth “A” |
Jacket Width “B” |
Jacket Height “C” |
Flue Size “D” |
Distance Between Tappings* | |||||
---|---|---|---|---|---|---|---|---|---|---|
“E” | Water | Steam | ||||||||
“E1” | “E1” | “E2” | “E3” | “E4” | ||||||
LCE-13 | 71-3/4″ | 37″ | 63″ | 14″ | 62-3/16″ | — | 36-3/16″ | — | — | — |
LCE-14 | 76-13/16″ | 37″ | 63″ | 14″ | 67-1/4″ | — | 20-5/16″ | 20-5/16″ | — | — |
LCE-15 | 81-7/8″ | 37″ | 63″ | 14″ | 72-5/16″ | — | 26″ | 20-5/16″ | — | — |
LCE-16 | 86-15/16″ | 37″ | 63″ | 14″ | 77-7/16″ | — | 26″ | 25-7/16″ | — | — |
LCE-17 | 92-1/8″ | 37″ | 63″ | 14″ | 82-1/2″ | — | 20-5/16″ | 20-5/16″ | 15-1/4″ | — |
LCE-18 | 97-3/16″ | 37″ | 63″ | 16″ | 87-9/16″ | — | 20-5/16″ | 20-5/16″ | 20-5/16″ | — |
LCE-19 | 102-1/4″ | 37″ | 63″ | 16″ | 92-5/8″ | — | 20-5/16″ | 20-5/16″ | 25-7/16″ | — |
LCE-20 | 107-7/16″ | 37″ | 63″ | 16″ | 97-3/4″ | — | 20-5/16″ | 20-5/16″ | 15-1/4″ | 15-1/4″ |
LCE-21 | 112-1/2″ | 37″ | 63″ | 16″ | 102-13/16″ | — | 20-5/16″ | 20-5/16″ | 20-5/16″ | 15-1/4″ |
LCE-22 | 117-9/16″ | 37″ | 63″ | 16″ | 107-7/8″ | — | 20-5/16″ | 20-5/16″ | 20-5/16″ | 20-5/16″ |
LCE-23 | 122-5/8″ | 37″ | 63″ | 16″ | 112-15/16″ | — | 26″ | 20-5/16″ | 20-5/16″ | 20-5/16″ |
LCE-24 | 127-11/16″ | 37″ | 63″ | 16″ | 118-1/16″ | — | 26″ | 20-5/16″ | 20-5/16″ | 25-7/16″ |
Apply Prefix”O” for oil—”G” for gas—”GO” for gas-oil.
The manufacturer should be consulted before selecting a boiler for installations having unusual piping and pickup requirements, such as intermittent system operation,
extensive piping, etc. For forced hot water heating systems where the boiler and all the piping are within the area to be heated, the boiler may be selected on the
basis of its Gross Output.
* Dimensions are approximate.
