Commercial Boilers - Gas Boilers Series SC™ with Optional Tankless Heater Boiler

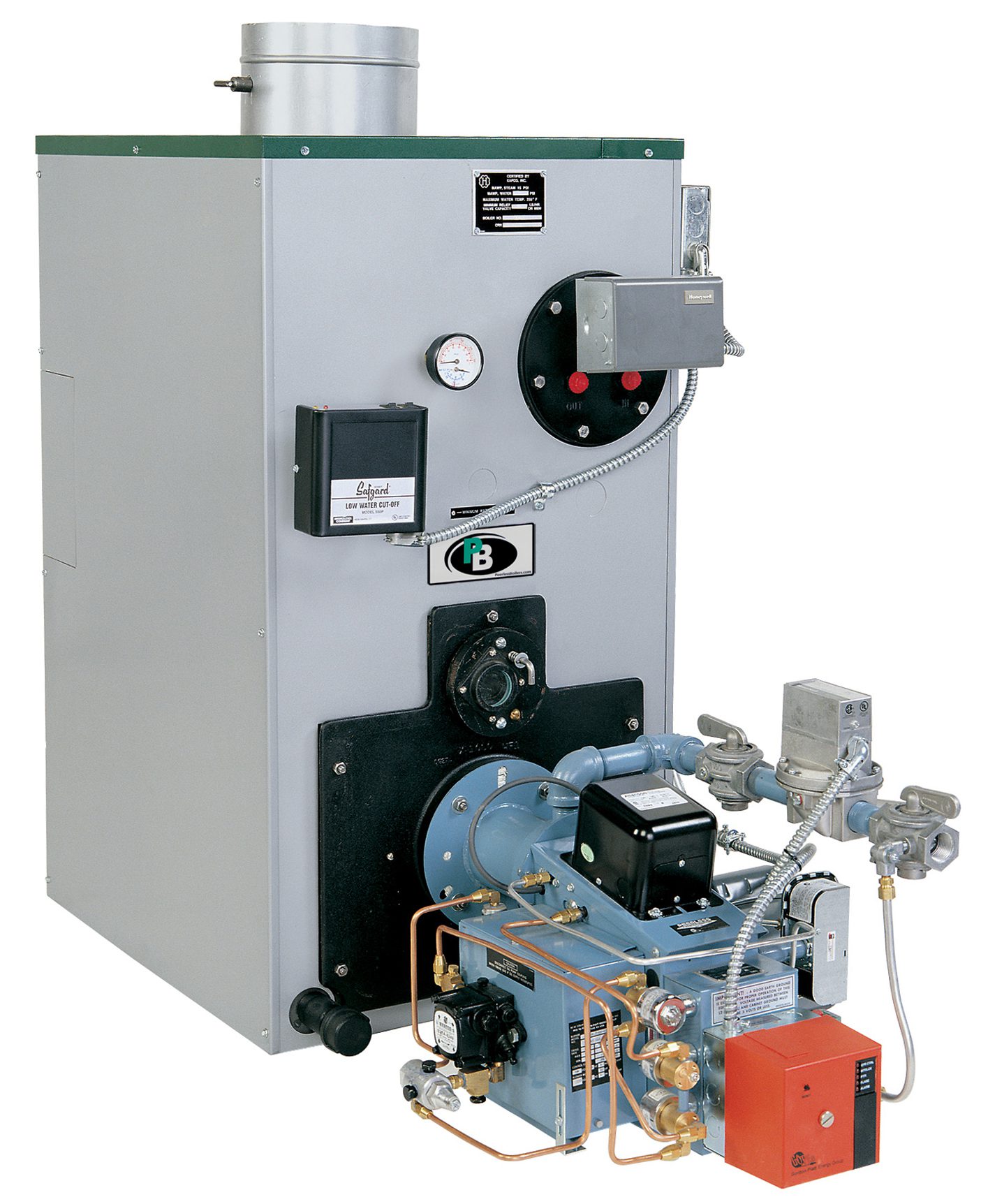

The Series SC™ boiler is a cast iron semi-commercial, steam or hot water boiler that can be fired as either a gas, oil, or a combined gas/oil boiler. The forced-draft boiler is available in a fully-packaged or knocked-down configuration and is available with or without a tankless coil for your domestic hot water requirements. There are six sizes available with thermal efficiencies of up to 83.8%.




Product Details:

Type: Semi-Commercial
Construction: Cast Iron
Fuel: Oil, Gas, Gas/Oil-Fired
Input: 392 to 794 MBH
Output: 327 to 645 MBH
Venting: Forced Draft
Trim: Steam or Hot Water
Combustion: Power Burner


Series SC™
Boiler
Model Number
Oil Input Gas Input, MBH Gross Output, MBH Net Ratings Thermal Efficiency, % Combustion Efficiency, % Boiler H.P. Water Content, Gallons
Steam, sqft Water, MBH Steam, MBH
GBH MBH Oil Gas Oil Gas Water Steam
SC(T)-05 2.80 392 404 327 1,022 284 245 83.4 80.9 85.4 82.8 9.8 26.04 20.40
SC(T)-06 3.50 490 505 409 1,278 356 307 83.5 81.0 85.4 82.8 12.2 30.36 23.52
SC(T)-07 4.00 560 577 468 1,463 407 351 83.6 81.1 85.3 82.8 14.0 34.68 26.64
SC(T)-08 4.50 630 649 527 1,647 458 395 83.6 81.1 85.3 82.8 15.8 39.03 29.76
SC(T)-09 5.00 700 722 586 1,832 510 440 83.7 81.2 85.3 82.7 17.5 43.32 32.88
SC(T)-10 5.50 770 794 645 2,016 561 484 83.8 81.2 85.3 82.7 19.3 47.64 36.00

The above ratings are based on 12.75% CO2 (oil) and +.10 in. W.C. at the vent.

The Net Ratings shown include allowance for normal piping and pickup load in accordance with Testing and Rating standard for Low Pressure Cast Iron Heating Boilers of The Hydronics Institute. Water ratings are based on a piping and pickup allowance factor of 1.15. Steam ratings based on an allowance factor of 1.33. PB Heat should be consulted before selecting a boiler for gravity hot water installations and installations having unusual piping and pickup requirements such as extended piping systems, exposed piping, night set-back, etc. Ratings shown are for elevations up to 2,000 feet. For elevations above 2,000 feet ratings should be reduced at the rate of 4 percent for each 1,000 feet above sea level.

Burner Capacity is based on G.P.H. with a heating value of 140,000 BTU/gal. Burner input based on maximum altitude of 2,000 ft.—for other altitudes consult factory.

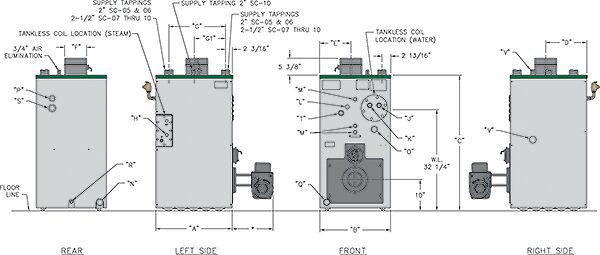

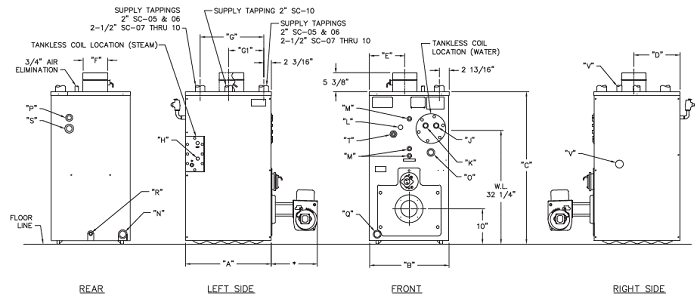

Series SC™ Boiler Dimensions

Boiler
Model
Number
Jacket Rear of Jacket to c/l of Flue
“D”
Left of Jacket to c/l of Flue
“E”
Flue Size
“F”
Approx. Dist. Between Tappings
“G”
Approx. Dist. Between Tappings
“G1”
Depth
“A”
Width
“B”
Height
“C”
SC(T)-05 24-1/2″ 22-1/2″ 43-1/4″ 13-1/4″ 10″ 7″ 17-7/16″
SC(T)-06 28-3/4″ 22-1/2″ 43-1/4″ 15-3/8″ 10″ 9″ 21-5/8″
SC(T)-07 33″ 22-1/2″ 43-1/4″ 17-1/2″ 10″ 9″ 25-13/16″
SC(T)-08 37-1/4″ 22-1/2″ 43-1/4″ 19-5/8″ 10″ 9″ 30″
SC(T)-09 41-1/2″ 22-1/2″ 43-1/4″ 21-3/4″ 10″ 10″ 34-3/16″
SC(T)-10 45-3/4″ 22-1/2″ 43-1/4″ 23-7/8″ 10″ 10″ 38-3/8″ 17-1/8″
