Residential Boilers - Gas Boilers Series 63-x™ Boiler

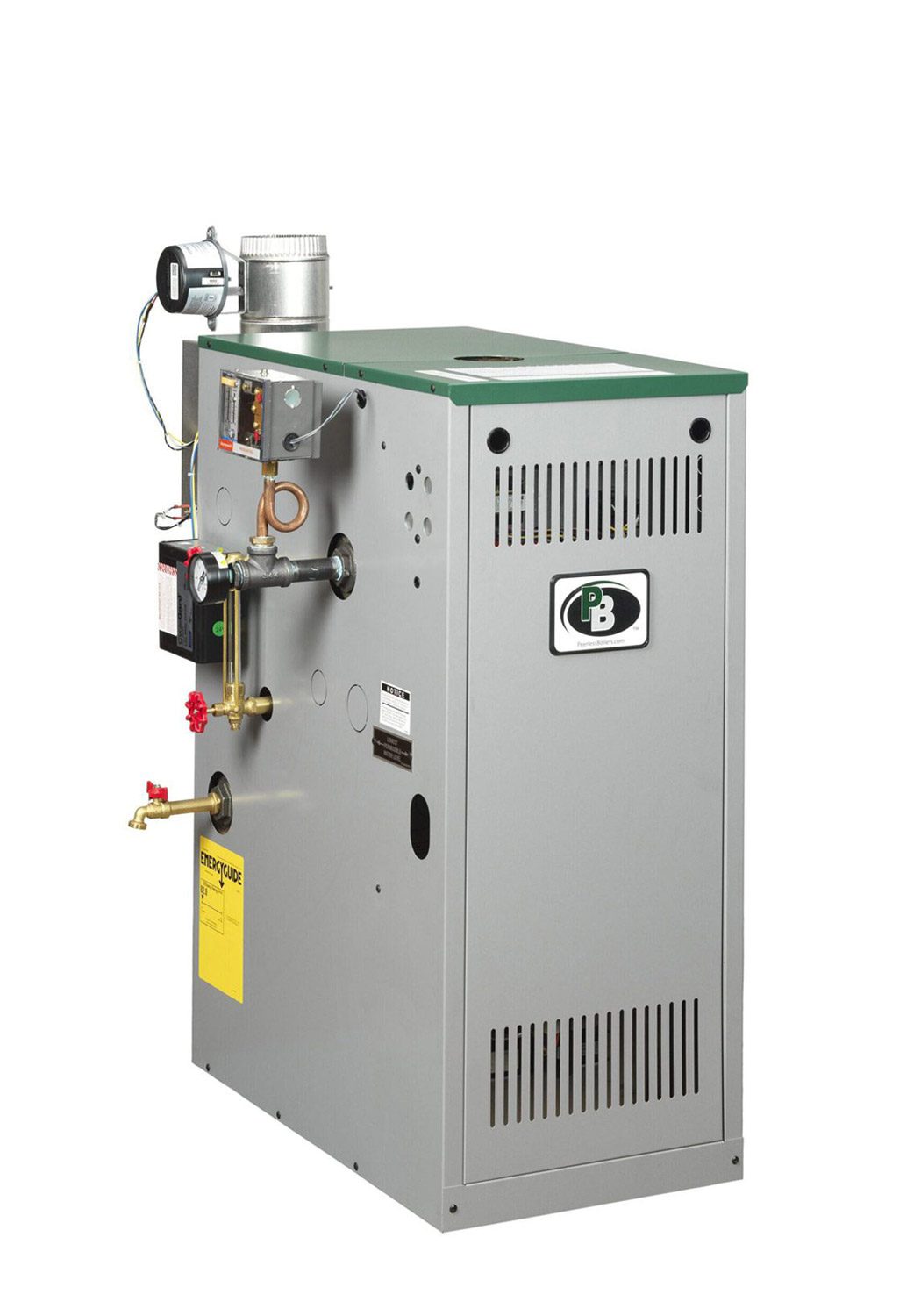

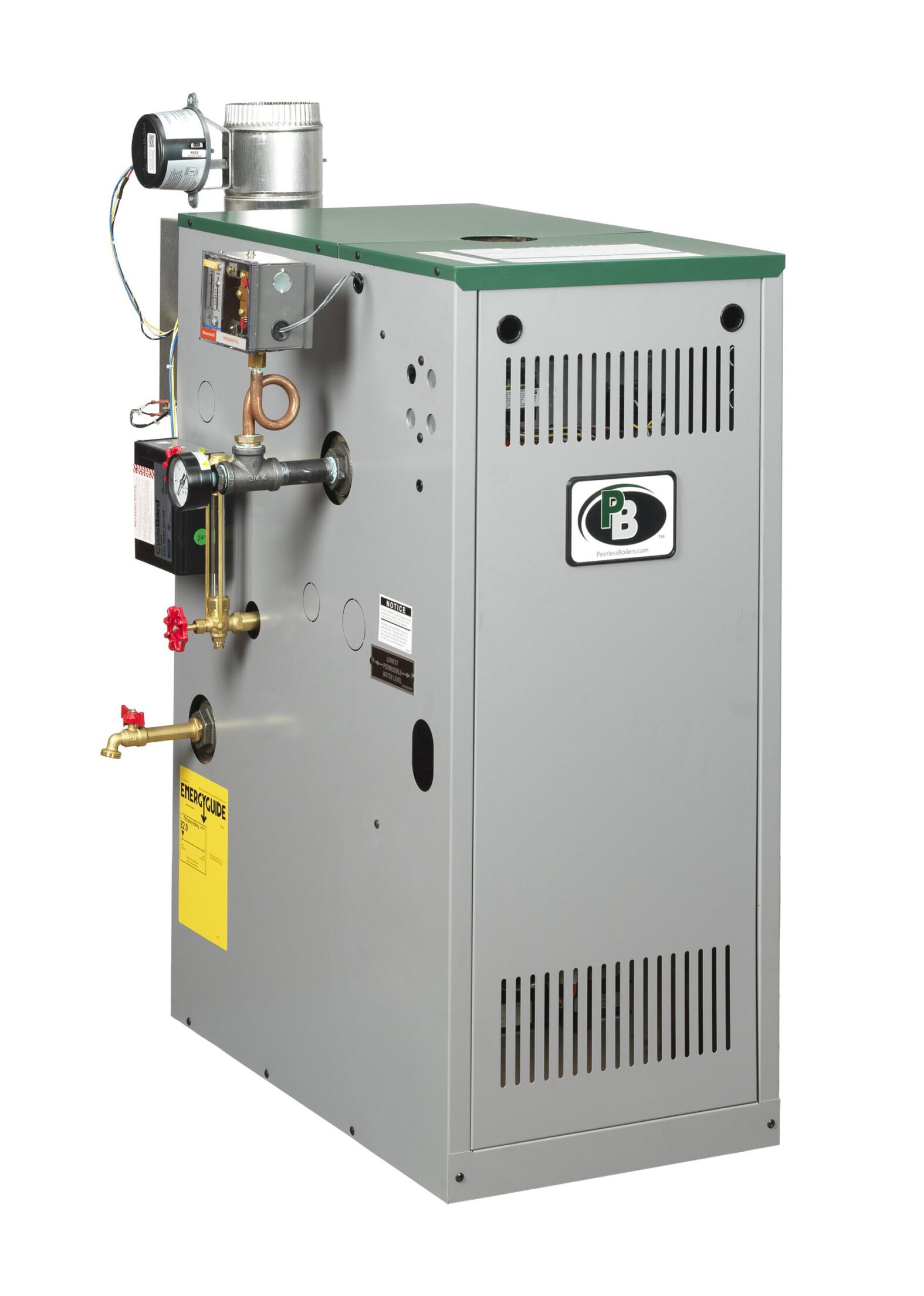

The Series 63-x™ is a residential, cast iron steam boiler for natural gas systems. Packaged and ready to install, the Series 63-x is available for natural draft chimney applications and features spark ignition, steel push nipples and skim tapping for cleaning steam boilers. Standard equipment includes a probe low water cut-off (CG400 24V), temperature-pressure gauge and an automatic vent damper. The Series 63-x is backed by a complete warranty!
Now Available – save time and money with complete Near Boiler Piping Kits, available for Series 63-x™ boilers.
Product Details:
Type: Residential
Construction: Cast Iron
Fuel: Gas-Fired (Natural)
Input: 100 to 250 MBH
Output: 82 to 206 MBH
Venting: Natural Draft
Trim: Steam
Ignition: Spark Pilot
| Series 63-x™ |
Water Content | Approx. Shipping Weight, lb | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Input, MBH | Heating Capacity3, MBH | Net Ratings1 | AFUE2, % | |||||||
| Steam, MBH | Steam, sqft | Steam, MBH | Steam | Steam, gal | |||||||
| 63-x-03 | 100 | 82 | 258 | 62 | 82 | 7 | 480 | ||||
| 63-x-04 | 150 | 124 | 388 | 93 | 82 | 9 | 595 | ||||
| 63-x-05 | 200 | 165 | 517 | 124 | 82 | 11 | 725 | ||||
| 63-x-06 | 250 | 206 | 646 | 155 | 82 | 13 | 840 | ||||
- Net Ratings are based on DOE Heating Capacity or Gross Output less an allowance for normal piping and pickup
as determined by AHRI requirements. Water ratings are based on a piping and pickup factor of 1.15. Steam
ratings are based on a piping and pickup factor of 1.33. Consult us before selecting a boiler for gravity hot water
installations or for installations having unusual piping and pickup requirements such as exposed piping, night
set-back, etc. Ratings shown are for elevations up to 2,000 feet. For elevations above 2,000 feet, ratings should
be reduced at the rate of 4% for each 1,000 feet above sea level. - Heating Capacity and Annual Fuel Utilization Efficiency (AFUE) ratings are based on U.S. Government tests.
Before purchasing this appliance, read important information about its estimated annual energy consumption or
energy efficiency rating that is available from your retailer. - ‡AHRI Directory indicates inputs to nearest whole number.

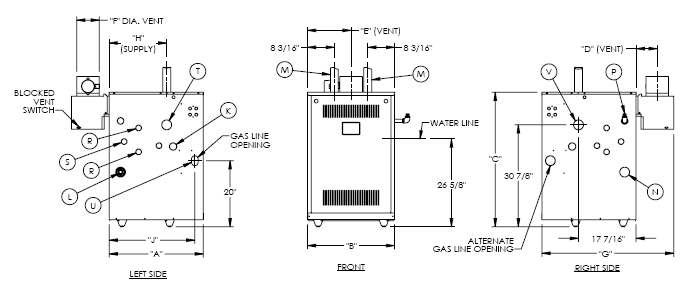

Series 63-x™ Boiler Dimensions
| Boiler Model Number | Jacket Depth “A” | Jacket Width “B” | Jacket Height “C” | Rear of Jkt. to c/l of Vent “D” | Left of Jkt. to c/l of Vent “E” | Vent Size Dia. “F” | Overall Depth “G” | Rear of Jkt. to c/l of Supply “H” | Rear of Jkt. to c/l of Gas Inlet “J” | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | |
| 63-x-03 | 28-1/2″ | 724 | 16-5/16” | 414 | 40-3/4” | 1035 | 6-3/8” | 162 | 8-1/2” | 216 | 5” | 127 | 40” | 1016 | 17-1/2” | 445 | 26” | 660 |
| 63-x-04 | 28-1/2” | 724 | 21-3/8” | 543 | 40-3/4” | 1035 | 6-3/8” | 162 | 11” | 279 | 6” | 152 | 40” | 1016 | 17-1/2” | 445 | 26” | 660 |
| 63-x-05 | 28-1/2” | 724 | 26-7/16” | 672 | 40-3/4” | 1035 | 6-3/8” | 162 | 13-1/2” | 343 | 7” | 178 | 40” | 1016 | 17-1/2” | 445 | 26” | 660 |
| 63-x-06 | 28-1/2” | 724 | 31-1/2” | 800 | 40-3/4” | 1035 | 6-3/8” | 162 | 16” | 406 | 8” | 203 | 40” | 1016 | 17-1/2” | 445 | 26” | 660 |
Tapping Locations
| Tap ID | Size NPT | Description | |||
|---|---|---|---|---|---|
| 03 | 04 | 05 | 06 | ||
| K | 1-1/4” | 1-1/4” | 1-1/4” | 1-1/4” | IWH Connection |
| L | 3/4” | 3/4” | 3/4” | 3/4” | Drain Valve |
| M | 2” | 2” | 2” | 2” | Supply |
| N | 2” | 2” | 2” | 2” | Return |
| P | 3/4” | 3/4” | 3/4” | 3/4” | Safety Relief Valve |
| R | 1/2” | 1/2” | 1/2” | 1/2” | Gauge Glass |
| S | 3/4” | 3/4” | 3/4” | 3/4” | Probe Type LWCO |
| T | 2” | 2” | 2” | 2” | Pressure Limit Control |
| U | 1/2” | 1/2” | 3/4” | 3/4” | Gas Line |
| V | 2” | 2” | 2” | 2” | Skimming Connection |
